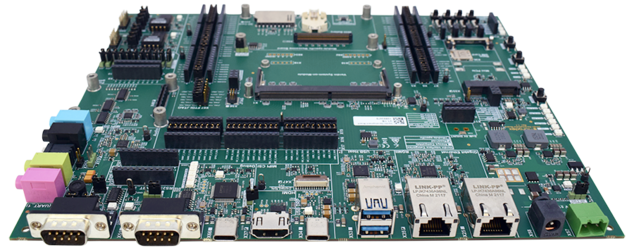

Verdin Development Board with HDMI Adapter
The Verdin Development Board is a fully featured carrier board providing easy access to all features of the Verdin family. Several display adapter boards will be available to support HDMI, LVDS, DSI and Parallel RGB display interfaces (a Verdin DSI to HDMI Adapter is included with Verdin Development Boards).
하이라이트
The Verdin Development Board is a fully featured carrier board providing easy access to all features of the Verdin family. It is an ideal platform for hardware development and integration. The board is compatible with all current and future Verdin modules.
Be it USB 3.0, Gigabit Ethernet, HDMI, MIPI DSI, MIPI CSI or PCIe: the board provides access to Verdin high-speed interfaces. Transceivers for CAN, RS-232 and RS-485 let you connect industry-standard interfaces directly. Built-in UART to USB transceivers allow you to monitor and communicate with UART interfaces via USB - in a simple and convient way, without any additional cables and accessories.
The jumper section lets you interface your hardware directly and try out non-standard pin multiplexing options. Full access to the Module-specific pins of Verdin SoMs lets you leverage all unique features of those modules.
With the Verdin Development Board, you can try out different power control concepts, from the simplest to the most advanced ones - including granular power control of each peripheral.
Toradex provides integrated debugging features compatible with many common development tools (e.g. Visual Studio Code). JTAG is accessible via a standard JTAG pin header or via an FTDI JTAG to USB converter.
Several display adapter boards will be available to support HDMI, LVDS, DSI and Parallel RGB display interfaces (a Verdin DSI to HDMI Adapter is included with Verdin Development Boards).
The complete design documentation - including validated PDF schematics, Altium project files (schematics, layout and IPC-7351 compliant component libraries), Bill of Materials (BOMs) - is freely available for download from our developer website. The project files are a good starting point for your own design. They demonstrate how the Direct Breakout technology makes it incredibly easy to implement leading-edge interfaces with minimal risk and effort.
Need More than just an SBC
Talk to us about SBC Customization and System on Modules.
Customized Products
With Custom Product Solutions, you have many different starting points available for your customization. Start with our Complete Devices, Carrier Boards, or even our Systems on Module (SoMs) and tailor it to your exact requirements.
- Customize & Design
- Manufacture
- Manage & Maintain
System on Modules
Fully custom approach. Design your own carrier board based on your specific needs.
Configure Your SBC
Create your own customized SBC액세서리
Toradex는 최종 제품에 직접 사용할 수 있는 완제품 액세서리를 제공합니다. 이러한 액세서리 중 일부에 대한 설계 파일에는 조립 도면, 회로도 및 Altium 프로젝트가 포함되어 있습니다.
Toradex는 웹샵에 나열된 주변 기기를 테스트하고 카메라, 모뎀, 디스플레이, 센서 등의 공급업체와 직접 협력하여 Toradex SoM과의 통합을 가능한 쉽게 만듭니다.
- Compatible with Verdin iMX95, iMX8M Mini, iMX8M Plus and AM62
- 4 screws (M2x10mm) included with each heatsink for easy mounting to Verdin Carrier Boards
- Compatible with Verdin AM62P
- 4 screws (M2x10mm) included with each heatsink for easy mounting to Verdin Carrier Boards
- LVDS cable (250mm) and 10 pin FFC cable (250mm) to connect it with a Carrier Board
- 34 Pins 0.5 mm FFC Ribbon Cable (150 mm) to connect with a Carrier Board
- 34 Pins 0.5 mm FFC Ribbon Cable (250 mm) to connect with a Carrier Board
- Power Adapter: 12VDC 30W with international plugs
- Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board, Verdin Development Board, Dahlia Carrier Board
- USB 3.0: 1x USB-A (Host)
- LVDS: 1x Dual Channel
- LVDS: single/dual-lane up to 1920x1200/1366x768px, 60fps, 24bpp
지금 구매
1 모듈, 10 액세서리
V1.1F
PN: 99991105
Connectivity: USB 3.0: 2x USB-A (Host), USB 2.0: 1x USB-C (DualRole), 2x Gigabit Ethernet, 1x RS232, 4x I2C, 1x SPI, 3x PWM, 4x ADC, 2x CAN, Up to 98x GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo).
Physical: 7-24V DC ±10% Supply Voltage, Size: 250mm x 200mm
-
수량>0
-
단가US$348.00
사용 목적: For Evaluation/Development
재고 있음
Heatsink for Verdin modules
Compatible with Verdin iMX8M Mini and Verdin iMX8M Plus. 4 screws (M2x10mm) included with each heatsink for easy mounting to Verdin Carrier Boards, Range. Size: 85.6 x 38 x 14.27 mm.
-
수량1-99>99
-
단가US$13.75
현재 재고가 부족합니다. 곧 더 많이 입고될 예정입니다. 자세한 내용은 문의하기로 문의하십시오.
Note: Not compatible Verdin AM62. Suitable for evaluation only with Verdin iMX95.
사용 목적: For End Products
한정 재고
V1.0A
PN: 99971000
Accessory kit for Toradex carrier boards
Power Adapter: 12VDC 30W with international plugs. Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board, Verdin Development Board, Dahlia Carrier Board.
-
수량>0
-
단가US$50.40
현재 재고가 부족합니다. 곧 더 많이 입고될 예정입니다. 자세한 내용은 문의하기로 문의하십시오.
사용 목적: For Evaluation/Development
한정 재고
V1.1A
PN: 01591100
Connects directly to the DSI Display Adapter Connector of the Verdin Development Board or Dahlia to provide an LVDS output. It is directly compatible with the Capacitive Touch Display 10.1" LVDS. No external power supply required.
Range. Size: 50 x 40 mm.
-
수량>0
-
단가US$49.90
현재 재고가 부족합니다. 곧 더 많이 입고될 예정입니다. 자세한 내용은 문의하기로 문의하십시오.
사용 목적: For Evaluation/Development
한정 재고
× ![]()
