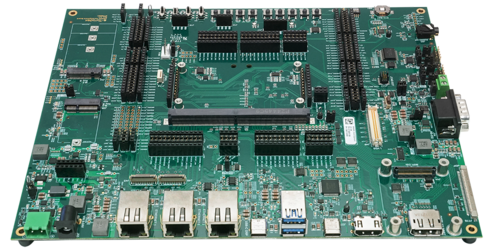

SMARC Development Board with HDMI Adapter
The SMARC Development Board is a fully featured carrier board providing easy access to all features of the SMARC family. Several display adapter boards will be available to support HDMI, LVDS and DSI interfaces (a DSI to HDMI Adapter is included with SMARC Development Boards).
하이라이트
Easy Access to SMARC Interfaces
You can easily access SMARC Interfaces by means of physical connectors and standard pitch headers. It includes Display Port, HDMI, M.2 Key B (for cellular modems), M.2 Key E (for WiFi modules, AI accelerators), CSI, DSI, LVDS, USB-C, Analog Audio, up 3x 1GB ETH PHY, and more. This board provides a flexible development environment to explore the functionality and performance of the Toradex SMARC Computer on Module Family.
Built for Developers
The board is equipped with jumpers and breakout areas for easy probing, debugging, and re-routing. It also includes buttons, switches, level shifters, LEDs, and a JTAG interface to support your development journey.
Open-source Hardware
All the Design Data is available, including Altium Design Files, Schematics, and Bill of Material (BOMs), making SMARC Development Board an ideal starting point for your customized board.
Learn More
Equipped with Industry-standard interfaces
The SMARC Development Board includes transceivers for CAN, Isolated CAN, RS-232, and RS-485, allowing you to connect industry-standard interfaces directly.
Torizon
SMARC Development Board is supported by Torizon, Toradex's Easy-to-Use Industrial Linux Platform. It allows you to Modernize your Development and Maintenance. Torizon is easy to use, secure, and reliable thanks to full-stack integration from the cloud to the hardware.
Learn More
특징
앞면
뒷면
| Supported Modules | Entire Toradex SMARC Family & 3rd-Party ARM-based SMARC Modules |
| USB 3.0 | 2x USB-A (Host) |
| USB 2.0 | 1x USB-C (Dual Role) |
| Ethernet | 3x Gigabit |
| PCIe | 1x M.2 Key E 1x M.2 Key B (+ Micro-SIM card connector) |
| I2C | 5x |
| SPI | 2x |
| UART | 4x |
| PWM | 3x |
| GPIO | 14x |
| RS232 | 1x |
| RS485 | 1x |
| SDIO/SD/MMC | 1x 4 Bit (Full Size) |
| CAN | 2x |
| JTAG | 1x |
| Display Serial Interface | 1x Quad Lane MIPI DSI |
| LVDS | 1x Dual-Channel |
| HDMI | 1x Native / 1x Via included Verdin DSI to HDMI Adapter |
| Digital Audio | 2x I2S |
| Display Port | 1x |
| Embedded Display Port (eDP) | 1x |
| Camera Serial Interface | 1x Quad Lane MIPI CSI / 1x Dual Lane MIPI CSI |
| Analog Audio Line in | 1x (Stereo) |
| Analog Audio Mic in | 1x (Stereo) |
| Analog Audio Headphone out | 1x (Stereo) |
| Analog Audio Line out | 1x (Stereo) |
| Size | 250 x 200mm |
| Temperature | 0° to 70° C |
| Power Supply - Primary | 9-24V (+/-10%) |
최적의 캐리어 보드를 선택하는 데 도와주세요
안내해주세요액세서리
Toradex는 최종 제품에 직접 사용할 수 있는 완제품 액세서리를 제공합니다. 이러한 액세서리 중 일부에 대한 설계 파일에는 조립 도면, 회로도 및 Altium 프로젝트가 포함되어 있습니다.
Toradex는 웹샵에 나열된 주변 기기를 테스트하고 카메라, 모뎀, 디스플레이, 센서 등의 공급업체와 직접 협력하여 Toradex SoM과의 통합을 가능한 쉽게 만듭니다.
- Compatible with the SMARC iMX8M Plus and the SMARC iMX95
- 6 screws (M2.5x8mm) included with each heatsink for easy mounting to SMARC Carrier Boards and Modules
- LVDS cable (250mm) and 10 pin FFC cable (250mm) to connect it with a Carrier Board
- 34 Pins 0.5 mm FFC Ribbon Cable (150 mm) to connect with a Carrier Board
- 34 Pins 0.5 mm FFC Ribbon Cable (250 mm) to connect with a Carrier Board
- 24 Pins 0.12 mm FFC Ribbon Cable (150 mm) to connect with a Carrier Board
- Power Adapter: 12VDC 30W with international plugs
- Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board, Verdin Development Board, Dahlia Carrier Board
- LVDS: single/dual-lane up to 1920x1200/1366x768px, 60fps, 24bpp
× ![]()
