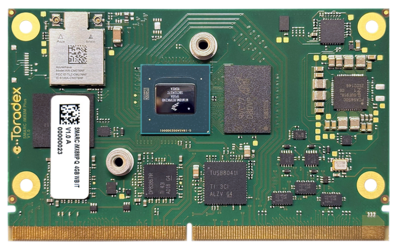

NXP i.MX 8M Plus Computer on Module
SMARC iMX8M Plus
Designed for second-source strategies. Combines a standardized form factor with Toradex quality and long-term availability. Integrated NPU delivering up to 2.3 TOPS for AI and vision applications.
- Fully compliant with the SMARC 2.2 specification
- NXP® i.MX 8M Plus applications processor with up to 4x Cortex-A53 1.6 GHz
- Cortex-M7 processor with speeds up to 800 MHz
- Neural Processing Unit (NPU) and Image Signal Processor (ISP)
- Dual Band 2.4/5 GHz 2x2 Wi-Fi 5 (802.11ac) + Bluetooth 5.3
- LTS-supported Linux software stack, including OTA, Remote Access, and Device Monitoring
하이라이트
High-Performance Machine Learning
The neural network processing unit (NPU) was built from the ground up to excel at deep learning inference, delivering performance several times greater than CPU and GPU solutions within the same power envelope. Toradex offers seamless integration with widely used machine learning frameworks like TensorFlow.
See real-world AI deployments on our Artificial Intelligence use case page.
Seamless Camera Integration
Toradex collaborates with top embedded camera module providers to deliver a range of easily integrated camera solutions, minimizing both time-to-market and associated risks.
Torizon for Remote Updates and Fleet Monitoring
The SMARC iMX8M Plus SoM is available with a tightly integrated Torizon Cloud accelerating the development and maintenance of your products. Some key features include highly secure and reliable remote updates, fleet monitoring and remote access.
Ready for Hard-Real-Time
The heterogeneous multicore architecture enables critical hard-real-time tasks to be offloaded to the Cortex-M7 processor, ensuring ultra-low latency. Toradex offers development tools and OS support, for e.g. FreeRTOS, to streamline the process. Additionally, the asymmetric multicore setup can support a connected low-power mode or enhance security. With an 800 MHz clock speed, the Cortex-M7 is a powerful and efficient microcontroller.
High-Performance, Pre-Certified Wi-Fi and Bluetooth
Streamline your design with pre-certified wireless solutions, covering everything from modules to antennas, making end-device certification more predictable and cost-effective. The latest 802.11ac standard, along with support for multi-antenna configurations, ensures an excellent out-of-the-box user experience. Complementing this, Bluetooth 5 support offers high performance and compatibility with modern Bluetooth devices.
64-bit Performance
The NXP i.MX 8M Plus SoC features up to four high-performance 64-bit Armv8 Cortex-A53 cores, offering a cost-effective solution for running Linux with a modern graphical interface while delivering sufficient performance for typical industrial and medical applications.

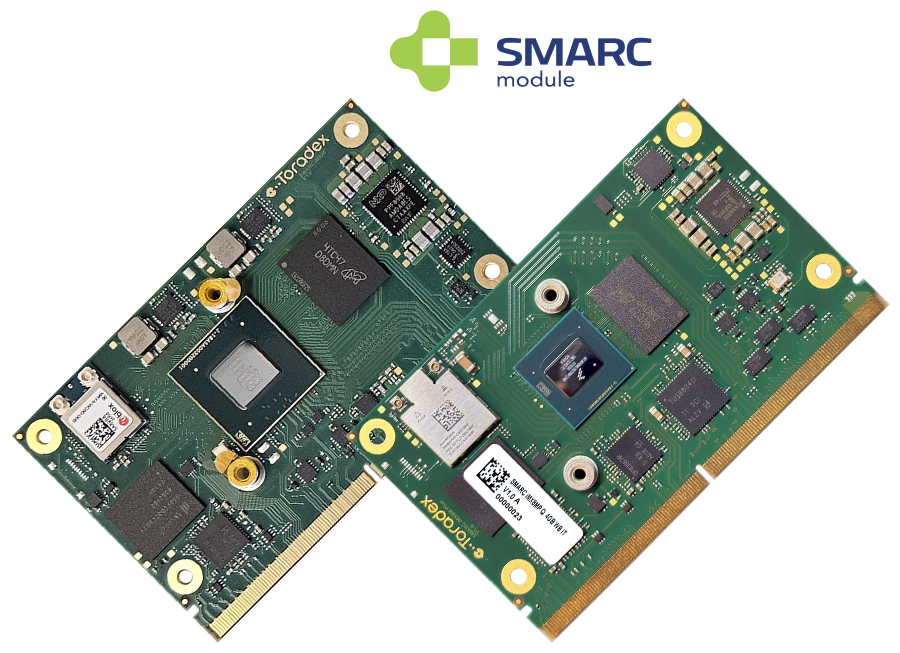

Toradex SMARC Family
The SMARC iMX8M Plus is part of the Toradex SMARC family. This family brings all the advantages of using a Toradex product to the SMARC ecosystem, including Toradex quality and reliability, ease of use, and a great developer experience!
Our SMARC family maximizes compatibility with other SMARC vendors, so even if you already have a SMARC-based carrier board, you can easily migrate to Toradex SMARC!
SMARC iMX8M Plus: Scalable AI-Ready Module with Broad Compatibility
Migrate To Toradex SMARC
Do you already have a SMARC product and want to leverage Toradex's unique offerings to lower your total cost of ownership and obtain better supply security? The Toradex SMARC family maximizes compatibility with a wide range of other SMARC providers, making it quick and easy to migrate your project to Toradex’s SMARC!
Typical Migration Effort
From the same SoC
2 weeks
From other ARM SoC
4 weeks
From x86 SoC
8 weeks
Torizon
Torizon makes modern, iterative product development easier by seamlessly integrating hardware, an OS, development tools, remote updates, and fleet monitoring. That makes it a scalable solution for devices requiring high reliability and security.
Be Fast, Be Secure, Be Reliable
Torizon accelerates your iMX8M Plus project. The ready and maintained embedded Linux OS with simple tools allows you to focus on your application. Torizon is built with Continuous Delivery in mind, so you can ship early and update iteratively. Secure and Reliable Built-in Remote Updates, Device Monitoring, and Remote access reduces your risk. It lets you detect issues before they get serious, debug devices in the field, and take action. Torizon also makes it easy to comply with new regulations like the EU Cyber Resilience Act.
Get an Overview For Application Developer For Tech Leads
Torizon OTA is very easy to manage and use, even for a non-technical. The support team has been a great help and have handled all requests very fast.
Mathias Poulsen,
Head of Product, Next 11
EU 사이버 복원력 법(CRA) 준수 지원
EU의 사이버 복원력 법(CRA)은 EU 내에서 판매되는 제품에 대해 엄격한 사이버 보안을 의무화하며, 미준수 시 최대 1,500만 유로 이상의 엄중한 벌금을 부과합니다. Toradex는 하드웨어와 소프트웨어를 CRA의 엄격한 요구 사항을 고려하여 설계함으로써 CRA 준수를 간소화하여, 개발 시간, 위험 및 비용을 절감해 드립니다.
주요 요구 사항:
특징
앞면
뒷면
| CPU Name | NXP® i.MX 8M Plus |
| CPU Type | 4x Arm Cortex™-A53 |
| Microcontroller | 1x Arm Cortex™-M7F |
| CPU Clock | 1.6 GHz (A53) 800 MHz (M7F) |
| RAM | Up to 4GB LPDDR4 (32 bit) |
| Flash | Up to 32GB eMMC |
| USB 3.2 | 2x Host (Gen1) |
| USB 2.0 | 1x OTG 2x Host |
| Ethernet | 2x Gigabit |
| Wi-Fi | 2.4/5 GHz Dual Band 2x2 Wi-Fi 5 (802.11ac) |
| Bluetooth | Bluetooth 5.3 |
| PCIe | 1 (x1 Gen 3) |
| I2C | 4x |
| SPI | 2x |
| UART | 4x |
| GPIO | 14x |
| PWM | 1x |
| SDIO/SD/MMC | 1x |
| CAN | 2x (CAN FD) |
| Neural Processing Unit (NPU) | Yes (2.3 TOPS) |
| Image Signal Processor (ISP) | Yes |
| Display Controller | Triple |
| Video Decoder | Yes |
| Video Encoder | Yes |
| Display Serial Interface | 1x Quad Lane MIPI DSI (up to 1920x1080) |
| LVDS | 1x (up to 1920x1080) |
| Digital Audio | 2x I2S |
| 2D Acceleration | Yes |
| 3D Acceleration | Yes |
| HDMI | 1x (up to 4k) |
| Camera Serial Interface | 1x Quad Lane MIPI CSI-2 + 1x Dual Lane MIPI CSI-2 |
최소한 다량 구매
from
자신의 SMARC iMX8M Plus - NXP i.MX 8M Plus System on Module 구성하기
4x Arm Cortex™-A53
1x Arm Cortex™-M7F
평가 키트
다음은 시작하기 위한 권장 제품 조합입니다.
SMARC iMX8M Plus Evaluation Kit 1
- Up to four Cortex-A53 1.8 GHz processors
- Cortex-M7 processor with speeds up to 800 MHz
- Neural Processing Unit (NPU)
- Image Signal Processor (ISP)
- NXP i.MX 8M Plus applications processor
- Dual Band 2.4/5 GHz 2x2 Wi-Fi 5 (802.11ac) + Bluetooth 5.3
- Included adapter for HDMI video output
- Torizon IoT Platform: Linux OS Maintenance, Remote Software Updates & Device Management
- Linux and other OS Support included
SMARC iMX8M Plus Evaluation Kit 2
- 10.1 inch Capacitive Touch Display, 1280x800, 8-bit LVDS output
- Up to four Cortex-A53 1.8 GHz processors
- Cortex-M7 processor with speeds up to 800 MHz
- Neural Processing Unit (NPU)
- Image Signal Processor (ISP)
- NXP i.MX 8M Plus applications processor
- Dual Band 2.4/5 GHz 2x2 Wi-Fi 5 (802.11ac) + Bluetooth 5.3
- Torizon IoT Platform: Linux OS Maintenance, Remote Software Updates & Device Management
- Linux and other OS Support included
SMARC iMX8M Plus Evaluation Kit 3
- 5MP Camera Set, Dual-Lane MIPI CSI output
- 10.1 inch Capacitive Touch Display, 1280x800, 8-bit LVDS output
- Up to four Cortex-A53 1.8 GHz processors
- Cortex-M7 processor with speeds up to 800 MHz
- Neural Processing Unit (NPU)
- Image Signal Processor (ISP)
- NXP i.MX 8M Plus applications processor
- Dual Band 2.4/5 GHz 2x2 Wi-Fi 5 (802.11ac) + Bluetooth 5.3
- Torizon IoT Platform: Linux OS Maintenance, Remote Software Updates & Device Management
- Linux and other OS Support included
SoM 이상이 필요하십니까?
싱글 보드 컴퓨터, 맞춤형 솔루션에 대해 문의하십시오.
싱글 보드 컴퓨터
Toradex 싱글 보드 컴퓨터는 완전 통합된 소프트웨어 지원을 제공하여 제품에 집중할 수 있게 해줍니다. 첫날부터 소프트웨어 개발을 시작하세요. 장기 지원 소프트웨어 스택. 프로토타입부터 대량 생산까지. 유연성을 유지하세요.
맞춤형 제품
맞춤형 제품 솔루션을 통해 여러 가지 맞춤형 출발점을 선택할 수 있습니다. 완성된 장치, 캐리어 보드 또는 시스템 온 모듈(SoM)에서 시작하여 정확한 요구 사항에 맞게 조정할 수 있습니다.
- 맞춤화 및 디자인
- 제조
- 관리 및 유지 관리
캐리어 보드
캐리어 보드는 CoM에 필요한 신호 및 전력 수준을 제공합니다. 또한 USB, 이더넷, UART 및 HDMI와 같은 응용 프로그램별 연결 및 멀티미디어 인터페이스를 제공합니다.
SBC와 캐리어 보드에 대해 자세히 알아보기
Supported Modules
USB 3.0
USB 2.0
Ethernet
PCIe
I2C
SPI
UART
PWM
GPIO
RS232
RS485
SDIO/SD/MMC
CAN
JTAG
Display Serial Interface
LVDS
HDMI
Digital Audio
Display Port
Camera Serial Interface
Analog Audio Line in
Analog Audio Mic in
Analog Audio Headphone out
Analog Audio Line out
Size
Temperature
Power Supply - Primary
액세서리
Toradex는 최종 제품에 직접 사용할 수 있는 완제품 액세서리를 제공합니다. 이러한 액세서리 중 일부에 대한 설계 파일에는 조립 도면, 회로도 및 Altium 프로젝트가 포함되어 있습니다.
Toradex는 웹샵에 나열된 주변 기기를 테스트하고 카메라, 모뎀, 디스플레이, 센서 등의 공급업체와 직접 협력하여 Toradex SoM과의 통합을 가능한 쉽게 만듭니다.
- Compatible with the SMARC iMX8M Plus and the SMARC iMX95
- 6 screws (M2.5x8mm) included with each heatsink for easy mounting to SMARC Carrier Boards and Modules
- LVDS cable (250mm) and 10 pin FFC cable (250mm) to connect it with a Carrier Board
- 34 Pins 0.5 mm FFC Ribbon Cable (150 mm) to connect with a Carrier Board
- 34 Pins 0.5 mm FFC Ribbon Cable (250 mm) to connect with a Carrier Board
- 24 Pins 0.12 mm FFC Ribbon Cable (150 mm) to connect with a Carrier Board
- Cable length: 100mm
- Frequency bands: 2.4 GHz and 5 GHz (dual-band)
- Manufacturer: Unictron
- Reference: AA222 (H2B1PD1A1C385L)
- Frequency bands: 2.4 GHz and 5 GHz (dual-band)
- Manufacturer: Chang Hong
- Reference: DA-2458-02
- Cable length: 100mm
- Cable length: 200mm
- Cable length: 200mm
- Suitable for outdoor-usage (IP67)
로드맵
Min. Product Commitment
2036+
Hardware Roadmap
This roadmap indicates how the product is planned from a Toradex hardware development point of view. This is not a detailed release date representation, but visualization of our internal product development timeline.
* Please note that the Product Version might change before going to Volume Product state without prior notice. Toradex is striving to provide a flawless experience once the product is being declared a Volume Product and therefore the hardware might be updated during the Sample Product phase. For details about the Toradex phase-over policy please refer to the PCN Policy Page.
- 2026
- 2027
- 2028
- 2029
- 2030
- 2031
- 2032+
SMARC iMX8M Plus System on Module
- In Development
- Sample Production
- Volume Production
× ![]()
