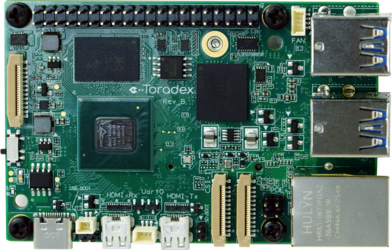

Toradex Luna SL1680
Synaptics SL1680
Ready-to-use SBC for commercial and light-industrial Edge AI applications.
Built-in AI
Accelerator
Strong Compute
Performance
Integrated
Security
Maker Boards
Industrial Devices
하이라이트
Neural Processing Unit (NPU)
Features an 8 TOPS (dense, INT8) NPU, ready for on-device AI.
Built-in Flash Storage
No need for an external SD Card, Luna offers up to 256GB eMMC
Wi-Fi and Bluetooth
Optionally integrated with Wi-Fi and Bluetooth connectivity.
M.2 Connector
Luna can be extended via a PCIe interface routed to M.2 Key E.
Typical Extended Temperature
From -25°C to +85°C, Luna outperforms consumer boards.
Pre-installed Torizon OS
A maintained Linux foundation from first boot through product maintenance.
Evaluate fast, reach market faster
Maker boards are attractive because they make evaluation quick. Luna SL1680 keeps that ready-to-use SBC speed, then adds the reliable foundation teams need to commercialize faster.
Maker boards
Fast early evaluation, but supply visibility, software maintenance, documentation depth, and commercial support often become unclear before product launch.
Luna SL1680
Same direct SBC evaluation speed, extended into integration, launch, and maintenance with Toradex foundations for commercial and light-industrial products.
Documentation
Product resources for faster integration decisions
Torizon OS
Production-ready software foundation with updates and maintenance
Supply chain
Global availability and Toradex supply-chain experience
Local support
Toradex Community, support resources, and regional help
Edge Al performance for product-ready devices
Luna SL1680 combines compute, acceleration, and multimedia interfaces so teams can prototype Al experiences quickly and carry them into commercial deployment on the same SBC foundation.
8 TOPS NPU
Fast on-device inference for commercial and light-industrial edge workloads
GPU + VPU
Video and image processing for multimedia products moving beyond evaluation
TensorFlow Lite support
Modern ML workflows with Linux and containers on a maintained software base
Integrated Development
Luna is integrated with our VSCode Extension, enabling all the convenience of modern development tools with zero setup time. It includes multiple templates to get you started on your application using the framework or programming language of your choice, as well as out-of-the-box remote debug capabilities and integration with CI/CD toolchains.
Production-ready software from day one
Luna comes with pre-installed Torizon OS, giving teams a maintained Linux-based foundation for developing, securing, updating, and maintaining embedded products.
With Torizon, teams can use modern development workflows while preparing their products for real-world deployment and long-term software maintenance.
CRA-ready software foundation
Security updates and CVE handling
OTA update workflows
Remote access and device monitoring
VS Code integration through Torizon IDE
Containers and Linux workflows
GUI framework support
AI/ML framework support
EU 사이버 복원력 법(CRA) 준수 지원
EU의 사이버 복원력 법(CRA)은 EU 내에서 판매되는 제품에 대해 엄격한 사이버 보안을 의무화하며, 미준수 시 최대 1,500만 유로 이상의 엄중한 벌금을 부과합니다. Toradex는 하드웨어와 소프트웨어를 CRA의 엄격한 요구 사항을 고려하여 설계함으로써 CRA 준수를 간소화하여, 개발 시간, 위험 및 비용을 절감해 드립니다.
주요 요구 사항:
특징
| System-on-Chip | Synaptics SL1680 |
| ARM Cores | 4x Cortex-A73 |
| CPU Clock | 2.1 GHz |
| RAM | Up to 4GB LPDDR4 (32bit) |
| Flash | Up to 256GB eMMC |
| USB 3.x | 4x Type-A |
| PCIe | 1x M.2 (Key E) |
| Wi-Fi / Bluetooth | Yes (via M.2) |
| Ethernet | 1x GbE |
| I2C | 1x |
| SPI | 1x |
| UART | 3x |
| PWM | 4x |
| GPIO | 22x |
| Analog Input | 2x |
| SDIO | 1x4-bit (microSD) |
| JTAG | 1x |
| Neural Processing Unit (NPU) | 8 TOPS (dense) |
| ISP | Yes |
| Display Controller | Dual |
| MIPI DSI | 1x Quad Lane |
| HDMI | 1x (TX) + 1x (RX) |
| Digital Audio | 2x I2S / 2x PDM |
| 2D/3D Acceleration | Yes |
| Video Encoder | Yes |
| Video Decoder | Yes |
| MIPI CSI | 2x |
최적의 SoM을 선택하는 데 도와주세요
안내해주세요Need More than just an SBC
Talk to us about SBC Customization and System on Modules.
Customized Products
Need tailored hardware, software, integration, or manufacturing support around your product?
System on Modules
Fully custom approach. Design your own carrier board based on your specific needs.
Light-Industrial SBCs
Use Luna when your product needs SBC speed with a stronger commercial foundation
