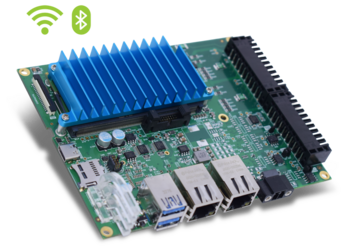

Ivy
Arm Industrial Single Board Computer
- From 1x Cortex-A53 up to 6x Cortex-A55 performance, scalable with any Verdin module
- Optimized for industrial and other harsh environments
- Industrial interfaces, including RS-232, RS-485 and isolated I/O
Just Add Your Application!
With Toradex's SBCs, the operating system is already handled for you. Use our VSCode integration, including out-of-the-box remote debug and integration with CI/CD toolchains, to develop your application using the framework or programming language of your choice, including Qt, Python, .Net Core, C#, C/C++, and more!
No Yocto required, no kernel patching, driver hunting, or device tree headaches
Security updates and long-term maintenance are built in
All essential peripherals are ready to use out of the box, jump straight into application development
운영 체제
Out-of-the-box images available for evaluation, development and production, including Linux and Android. No need for Yocto Project knowledge or for building Operating Systems yourself.
Toradex Supported OS
Torizon Embedded Linux OS
Torizon is a ready-to-use Linux-based software platform ideal for use in areas like industry and medicine, where reliability is critical. It is a developer-friendly ecosystem that simplifies the process of developing and maintaining embedded software.
Reference Images for Yocto Project
Toradex develops and maintains a Yocto Project-compatible, production-quality embedded Linux BSP in-house.
FreeRTOS
FreeRTOS is supported directly by Toradex. It is a real-time OS that runs on the Cortex-M4 cores in parallel to the main OS.
Zephyr RTOS
The Zephyr OS is based on a small-footprint kernel designed for use on resource-constrained and embedded systems.
Partner Supported OS
특징
Power Input (DC up to 8~72V)
Controllable Status LEDs
Isolated CAN
Isolated RS-485
Isolated RS-232
Gigabit Ethernet
Gigabit Ethernet
USB 3.0
USB OTG (USB-C)
Micro SD Card
Isolated I/O
ADC
ADC
Reset Button
Recovery Mode Button
Scalable performance and processing options
Extension connector (SPI, I2C, Power)
JTAG
Temperature Sensor
MIPI DSI
FRONT
RTC Battery
mPCIe
Nano SIM
TPM
BACK
| SoC Options | NXP i.MX 95 NXP i.MX8M Plus NXP i.MX8M Mini TI AM62P TI AM62 |
| Family Scalability | Verdin |
| CPU Cores | Up to 6x Cortex-A55 |
| Flash | Up to 32GB |
| RAM | Up to 8GB |
| Display Serial Interface | 1x Quad Lane MIPI DSI |
| Capacitive Touch Interface | Yes |
| USB 3.0 | 2x Host |
| USB 2.0 | 1x OTG |
| Ethernet | 2x Gigabit |
| PCIe | 1x (Mini PCIe) |
| I2C | 1x (extension connector) |
| SPI | 1x (extension connector) |
| UART | 1x RS232 1x RS485 |
| GPIO | 2x isolated digital inputs 4x isolated digital outputs (photo relays) |
| Analog Inputs | 2x Analog Input 0-25mA |
| SDIO/SD/MMC | 1x 4 Bit (microSD) |
| CAN | 2x (with transceivers) |
| LEDs | 1x RGB: power on and status 2x RGB: user configurable |
| RTC Backup Power | 1x CR1025 |
| TPM | 1x TPM2.0 |
| Altium CAE Data Freely Available | Yes |
| Supply Voltage | Ivy: 8-32V Ivy Plus: 8-72V |
| Size | 130 x 105 mm |
| Temperature | -40°C to 85° C |
| Intended Use | For End Products |
Configuration Options
| Ordering Info | System-on-Chip | CPU | RAM | Flash | GPU | NPU | ISP | Wi-Fi / BT | MIPI DSI | PCIe | Ethernet | CAN | UART | TPM | Supply Voltage | Temperature | Price (1-99 pcs) | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IVY-IMX95-8GB-WB-IT | NXP® i.MX 95 | 6x Arm Cortex™-A55 | 8GB LPDDR4X (32 Bit) | 32GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
Yes (2.0 TOPS) | Yes | Yes | 1x | 1x | 2x | 2x | 2x | - | 8-32V | -40° to 85° C | US$782.25 | 지금 구매 |
| IVY-PLUS-IMX95-8GB-WB-IT | NXP® i.MX 95 | 6x Arm Cortex™-A55 | 8GB LPDDR4X (32 Bit) | 32GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
Yes (2.0 TOPS) | Yes | Yes | 1x | 1x | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$837.20 | 지금 구매 |
| IVY-IMX8MM-2GB-IT | NXP® i.MX 8M Mini | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32-bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | - | 1x | 1x | 1x | 1x | 2x | - | 8-32V | -40° to 85° C | US$417.45 | 지금 구매 |
| IVY-AM62-2GB-WB-IT | TI AM 625 | 4x Arm Cortex™-A53 | 2GB LPDDR4 (16 Bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | - | 2x | 2x | 2x | - | 8-32V | -40° to 85° C(1) | US$433.50 | 지금 구매 |
| IVY-IMX8MP-1GB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 1GB LPDDR4 (32bit) | 8GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | - | 1x | 1x | 2x | 2x | 2x | - | 8-32V | -40° to 85° C | US$381.20 | 지금 구매 |
| IVY-AM62P-2GB-WB-IT | TI AM62P5 | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32 Bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes (50 GFLOPS) |
- | - | Yes | 1x | - | 2x | 2x | 2x | - | 8-32V | -40° to 85° C | US$423.50 | 지금 구매 |
| IVY-IMX8MM-2GB-WB-IT | NXP® i.MX 8M Mini | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32-bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | 1x | 1x | - | 2x | - | 8-32V | -40° to 85° C(1) | US$436.85 | 지금 구매 |
| IVY-IMX8MM-2GB-WB-IT-CAN | NXP® i.MX 8M Mini | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32-bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | 1x | 1x | 1x | 2x | - | 8-32V | -40° to 85° C(1) | US$440.95 | 지금 구매 |
| IVY-IMX8MP-2GB-WB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32-bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | Yes | Yes | 1x | 1x | 2x | 2x | 2x | - | 8-32V | -40° to 85° C(1) | US$448.15 | 지금 구매 |
| IVY-IMX8MP-4GB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 4GB LPDDR4 (32 bit) | 32GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
Yes (2.3 TOPS) | Yes | - | 1x | 1x | 2x | 2x | 2x | - | 8-32V | -40° to 85° C | US$560.00 | 지금 구매 |
| IVY-IMX8MP-4GB-WB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 4GB LPDDR4 (32 bit) | 32GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
Yes (2.3 TOPS) | Yes | Yes | 1x | 1x | 2x | 2x | 2x | - | 8-32V | -40° to 85° C | US$593.45 | 지금 구매 |
| IVY-PLUS-IMX8MM-2GB-IT | NXP® i.MX 8M Mini | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32-bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | - | 1x | 1x | 1x | 1x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$472.40 | 지금 구매 |
| IVY-PLUS-AM62-2GB-WB-IT | TI AM 625 | 4x Arm Cortex™-A53 | 2GB LPDDR4 (16 Bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | - | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C(1) | US$488.45 | 지금 구매 |
| IVY-PLUS-IMX8MP-1GB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 1GB LPDDR4 (32bit) | 8GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | - | 1x | 1x | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$436.15 | 지금 구매 |
| IVY-PLUS-AM62P-2GB-WB-IT | TI AM62P5 | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32 Bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes (50 GFLOPS) |
- | - | Yes | 1x | - | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$478.45 | 지금 구매 |
| IVY-PLUS-IMX8MM-2GB-WB-IT | NXP® i.MX 8M Mini | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32-bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | 1x | 1x | - | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C(1) | US$491.80 | 지금 구매 |
| IVY-PLUS-IMX8MM-2GB-WB-IT-CAN | NXP® i.MX 8M Mini | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32-bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | 1x | 1x | 1x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C(1) | US$495.90 | 지금 구매 |
| IVY-IMX8MP-8GB-WB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 8GB LPDDR4 (32 bit) | 32GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
Yes (2.3 TOPS) | Yes | Yes | 1x | 1x | 2x | 2x | 2x | - | 8-32V | -40° to 85° C | US$809.40 | 지금 구매 |
| IVY-PLUS-IMX8MP-2GB-WB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 2GB LPDDR4 (32-bit) | 16GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | Yes | Yes | 1x | 1x | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C(1) | US$503.10 | 지금 구매 |
| IVY-PLUS-IMX8MP-4GB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 4GB LPDDR4 (32 bit) | 32GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
Yes (2.3 TOPS) | Yes | - | 1x | 1x | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$614.95 | 지금 구매 |
| IVY-PLUS-IMX8MP-4GB-WB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 4GB LPDDR4 (32 bit) | 32GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
Yes (2.3 TOPS) | Yes | Yes | 1x | 1x | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$648.40 | 지금 구매 |
| IVY-PLUS-IMX8MP-8GB-WB-IT | NXP® i.MX 8M Plus | 4x Arm Cortex™-A53 | 8GB LPDDR4 (32 bit) | 32GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
Yes (2.3 TOPS) | Yes | Yes | 1x | 1x | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$864.35 | 지금 구매 |
| IVY-AM62-1GB | TI AM 623 | 2x Arm Cortex™-A53 | 1GB LPDDR4 (16 Bit) | 4GB eMMC | 2D Acceleration: - 3D Acceleration: - |
- | - | - | 1x | - | 2x | 2x | 2x | - | 8-32V | -25° to 85° C | US$302.50 | 지금 구매 |
| IVY-IMX8MM-1GB | NXP® i.MX 8M Mini | 2x Arm Cortex™-A53 | 1GB LPDDR4 (32bit) | 4GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | - | 1x | 1x | 1x | - | 2x | - | 8-32V | 0° to 70° C | US$155.00 | 지금 구매 |
| IVY-AM62-1GB-IT | TI AM 625 | 2x Arm Cortex™-A53 | 1GB LPDDR4 (16 Bit) | 8GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | - | 1x | - | 2x | 2x | 2x | - | 8-32V | -40° to 85° C | US$342.50 | 지금 구매 |
| IVY-AM62-1GB-WB-IT | TI AM 625 | 2x Arm Cortex™-A53 | 1GB LPDDR4 (16 Bit) | 8GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | - | 1x | 2x | 2x | - | 8-32V | -40° to 85° C | US$354.35 | 지금 구매 |
| IVY-IMX8MM-1GB-WB-IT | NXP® i.MX 8M Mini | 2x Arm Cortex™-A53 | 1GB LPDDR4 (32bit) | 8GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | 1x | 1x | - | 2x | - | 8-32V | -40° to 85° C(1) | US$386.85 | 지금 구매 |
| IVY-PLUS-AM62-1GB | TI AM 623 | 2x Arm Cortex™-A53 | 1GB LPDDR4 (16 Bit) | 4GB eMMC | 2D Acceleration: - 3D Acceleration: - |
- | - | - | 1x | - | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -25° to 85° C | US$357.45 | 지금 구매 |
| IVY-PLUS-IMX8MM-1GB | NXP® i.MX 8M Mini | 2x Arm Cortex™-A53 | 1GB LPDDR4 (32bit) | 4GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | - | 1x | 1x | 1x | - | 2x | 1x TPM2.0 | 8-72V | 0° to 70° C | US$209.95 | 지금 구매 |
| IVY-PLUS-AM62-1GB-IT | TI AM 625 | 2x Arm Cortex™-A53 | 1GB LPDDR4 (16 Bit) | 8GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | - | 1x | - | 2x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$397.45 | 지금 구매 |
| IVY-PLUS-AM62-1GB-WB-IT | TI AM 625 | 2x Arm Cortex™-A53 | 1GB LPDDR4 (16 Bit) | 8GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | - | 1x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$409.30 | 지금 구매 |
| IVY-PLUS-IMX8MM-1GB-WB-IT | NXP® i.MX 8M Mini | 2x Arm Cortex™-A53 | 1GB LPDDR4 (32bit) | 8GB eMMC | 2D Acceleration: Yes 3D Acceleration: Yes |
- | - | Yes | 1x | 1x | 1x | - | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C(1) | US$441.80 | 지금 구매 |
| IVY-AM62-512MB | TI AM 623 | 1x Arm Cortex™-A53 | 512MB LPDDR4 (16 Bit) | 4GB eMMC | 2D Acceleration: - 3D Acceleration: - |
- | - | - | - | - | 1x | 2x | 2x | - | 8-32V | 0° to 70° C | US$272.25 | 지금 구매 |
| IVY-AM62-512MB-WB-IT | TI AM 623 | 1x Arm Cortex™-A53 | 512MB LPDDR4 (16 Bit) | 4GB eMMC | 2D Acceleration: - 3D Acceleration: - |
- | - | Yes | - | - | 1x | 2x | 2x | - | 8-32V | -40° to 85° C | US$300.00 | 지금 구매 |
| IVY-PLUS-AM62-512MB | TI AM 623 | 1x Arm Cortex™-A53 | 512MB LPDDR4 (16 Bit) | 4GB eMMC | 2D Acceleration: - 3D Acceleration: - |
- | - | - | - | - | 1x | 2x | 2x | 1x TPM2.0 | 8-72V | 0° to 70° C | US$327.20 | 지금 구매 |
| IVY-PLUS-AM62-512MB-WB-IT | TI AM 623 | 1x Arm Cortex™-A53 | 512MB LPDDR4 (16 Bit) | 4GB eMMC | 2D Acceleration: - 3D Acceleration: - |
- | - | Yes | - | - | 1x | 2x | 2x | 1x TPM2.0 | 8-72V | -40° to 85° C | US$354.95 | 지금 구매 |
Evaluation Kits
Ivy Plus Complete Kit
- Includes everything you need to boot in less than 5 seconds
- Ivy Plus + iMX8M Plus 4GB WB IT
- 10.1 inch DSI Display with Capacitive Touch
- Heatsink
- Power supply and cables
Need More than just an SBC
Talk to us about SBC Customization and System on Modules.
Customized Products
With Custom Product Solutions, you have many different starting points available for your customization. Start with our Complete Devices, Carrier Boards, or even our Systems on Module (SoMs) and tailor it to your exact requirements.
- Customize & Design
- Manufacture
- Manage & Maintain
System on Modules
Fully custom approach. Design your own carrier board based on your specific needs.
액세서리
Toradex는 최종 제품에 직접 사용할 수 있는 완제품 액세서리를 제공합니다. 이러한 액세서리 중 일부에 대한 설계 파일에는 조립 도면, 회로도 및 Altium 프로젝트가 포함되어 있습니다.
Toradex는 웹샵에 나열된 주변 기기를 테스트하고 카메라, 모뎀, 디스플레이, 센서 등의 공급업체와 직접 협력하여 Toradex SoM과의 통합을 가능한 쉽게 만듭니다.
- Compatible with Verdin iMX95, iMX8M Mini, iMX8M Plus and AM62
- 4 screws (M2x10mm) included with each heatsink for easy mounting to Verdin Carrier Boards
- Compatible with Verdin AM62P
- 4 screws (M2x10mm) included with each heatsink for easy mounting to Verdin Carrier Boards
- 34 Pins 0.5 mm FFC Ribbon Cable (150 mm) to connect with a Carrier Board
- 34 Pins 0.5 mm FFC Ribbon Cable (250 mm) to connect with a Carrier Board
- Power Adapter: 12VDC 30W with international plugs
- Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board, Verdin Development Board, Dahlia Carrier Board
로드맵
Min. Product Commitment
2034+
Hardware Roadmap
This roadmap indicates how the product is planned from a Toradex hardware development point of view. This is not a detailed release date representation, but visualization of our internal product development timeline.
* Please note that the Product Version might change before going to Volume Product state without prior notice. Toradex is striving to provide a flawless experience once the product is being declared a Volume Product and therefore the hardware might be updated during the Sample Product phase. For details about the Toradex phase-over policy please refer to the PCN Policy Page.
- Q1'26
- Q2'26
- Q3'26
- Q4'26
- Q1'27
Ivy Carrier Board
Ivy Plus Carrier Board
- In Development
- Sample Production
- Volume Production
× ![]()
